Design

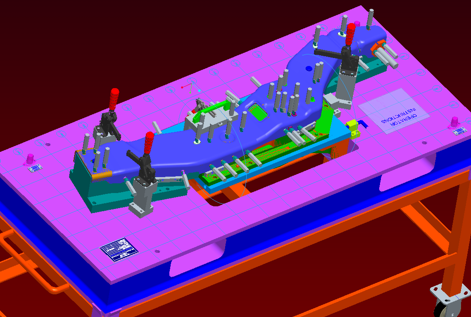

Whitworth Tool has a comprehensive in house engineering team.  Our team is comprised of many talented individuals, with a vast array of backgrounds and specialties.  Utilizing the latest in 2d and 3d CAD capabilities, our team can tackle any project.  We specialize in reverse engineering of individual die components and tool and die modification.  From our portable Romer arms the data is processed in Polyworks, taking a 3d polygonal model along with any 2d features, and reproducing into a complete 3d model.  This model can then be manipulated or reproduced as needed.  Creo (formerly Pro Engineer) is our main in house design software.  With top of the line surfacing and assembly capabilities, it lends itself well to engineering changes, and complete ground up designs.  Our team specializes in die design, special machines, automation, and check fixtures.  Whitworth Tool's engineering team can tackle your project from start to finish, utilizing our years of experience and expertise.

Design is applicable to tool design not production component design.
